| | ALTERNATE VIEWS : |  | | | | | DESCRIPTION : | | Features:
Digital Conversion from input TV signals of NTSC, N4, PAL,
PAL M, PAL N, SECAM to output signals of NTSC, PAL
Digital line (525<> 625 lines) and field (60<>50 field) conversion
Built-in Color bar
Input auto detecting
6M bit field memory
SPECIFICATIONS:
Input Systems: NTSC, N4, PAL, PAL M, PAL N, SECAM
Output TV Systems: NTSC 3.58, PAL

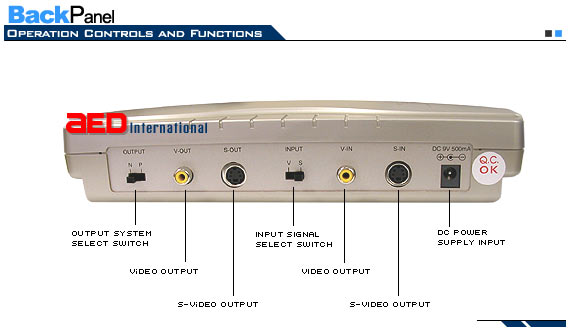

Connection Terminals:
Video Input: 1
S Input: 1
Video Output: 1
S Output: 1
Sampling Frequency:
Y: 13.5 MHz
R-Y: 6.75 MHz
B-Y: 6.75 MHz
Digital Code Bit
R: 8 bits
G: 8 bits
B: 8 bits
Line: 525 <> 625
Field: 60 <> 50
Power: DC 9V 500mA
Dimension: 236(W) x 130(D) x 45(H) mm
Accesory: One set of video cable, AC Adaptor
Weight: 3.00 Lbs |
|
|
