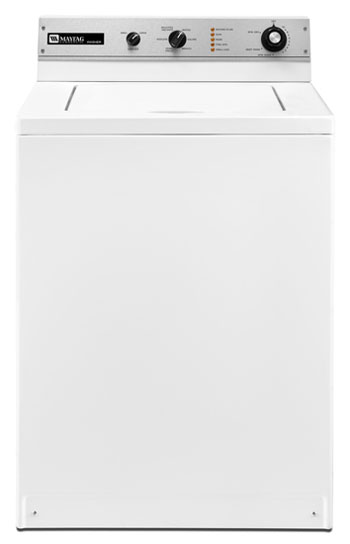

220-240 Volt/50Hz Commercial Energy Advantage™ Top Load Washer. X- Large Tub 3.2 cu. ft. Non coin Commercial Washer. Mechanical Timer. Universal Power Cord.
* 220-240 Volt/50Hz Commercial Energy Advantage Top Load
Washer
* X- Large Tub 3.2 cu. ft.
* Non coin Commercial Washer
* Mechanical Timer
* Universal Power Cord Built-To-Last Features
* Beltless Design
* Dependable Direct Drive Transmission
* Self Cleaning Pump
For Your Operation
* The Most Efficient, Best Cleaning Top-Load Washer From
Maytag
* Front Access For Easier Self-Service
* Extra Large Tub Capacity
* Extra-Large Lid And Tub Opening
* Dial-A-Fabric Cycle Selection
* Cycle Stage Indicator Lights
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half
century.
FOR YOUR OPERATION:
• The Most Efficient, Best Cleaning Top-Load Washer From
Maytag
• Extra-Large Lid And Tub Opening
• Dial-A-Fabric Cycle Selection
• Cycle Stage Indicator Lights
• Front Access For Easier Self-Service
• Extra Large Tub Capacity
BUILT-TO-LAST FEATURES:
• Premium Porcelain-Enamel Top
• Beltless Design
• Dependable Direct Drive Transmission
• Self Cleaning Pump
• Reliable ElectroMechanical Controls
• Best Warranty In The Business
MAT15MN MAYTAG COMMERCIAL ENERGY ADVANTAGE TOP-LOAD WASHER
REDUCES WATER USAGE BY 20%
*Compared to Maytag top-load washers manufactured before
2005. C L P 7 9 6 A
visit maytagcommerciallaundry.com or call 800-662-3587
WASHER SPECIFICATIONS MODEL MAT15MN MOTOR
Single-phase, reversible, thermoprotected, high torque
HP (kw) 1 ⁄2 (.37)
APPROXIMATE WATER USAGE — gallons (liters)
Average hot water usage per cycle 4.1 (15.5)
Average total water usage per cycle 30 (113.5)
ELECTRICAL RATING
Domestic model — voltage 120V/60 Hz
Export model — voltage 220–240V/50Hz
BREAKER/FUSE REQUIREMENT
Domestic model — amps 15
Export model — amps 10
CYLINDER
Volume — cu. ft. (liters) 3.2 (90.6)
Diameter — in. (mm) 20.3 (526)
Depth — in. (mm) 17.4 (442)
LID OPENING
In. (mm) 18 (457)
EXTRACT SPEED
Maximum rpm 640
Maximum g-force 120
OPERATING PRESSURE
Psi (bar) 20–100 (1–8)
INLET HOSE LENGTH
Ft. (m) 4.5 (1.37)
DRAIN HOSE LENGTH
Ft. (m) 4.4 (1.34)
APPROXIMATE WEIGHT
Crated — lbs. (kg) 179 (81.2)
Uncrated — lbs. (kg) 165 (74.8)
* Average based on JI testing with factory preset cycles.
See specific instructions for proper installation. Because
of continuous product improvement, Maytag reserves the
right to change specifications without notice.
Maytag Energy Advantage Top-Load Washer
MECHANICAL NON-COIN
At Maytag, we believe durable goods should remain just that.
That’s why every Maytag® product is constructed of the
highest-quality materials and with the utmost in precision
craftsmanship. It’s also why we stand behind our equipment
with solid service and support from our professional Maytag
laundry suppliers. Simply put, when you choose Maytag®
products, you ensure your peace of mind.
OUR COMMITMENT
TO DEPENDABLE QUALITY
MAT15MN MAYTAG COMMERCIAL ENERGY ADVANTAGE TOP-LOAD WASHER
THE BEST WARRANTY IN THE BUSINESS—5 YEARS ON ALL PARTS
For a period from the date of original purchase through the
time listed above, the designated parts that fail in normal
commercial use will be repaired or replaced free of charge
for the part itself, with the owner paying all other costs,
including labor, transportation and customs duty. Chemical
damage is excluded from all warranty coverage. See complete
warranty for details.
NOTE: THIS APPLIANCE IS NOT DESIGNED FOR USE IN AMERICA -
ONLY FOR THE COUNTRIES THAT USE 220 VOLTS ELECTRICAL OUTLET.
