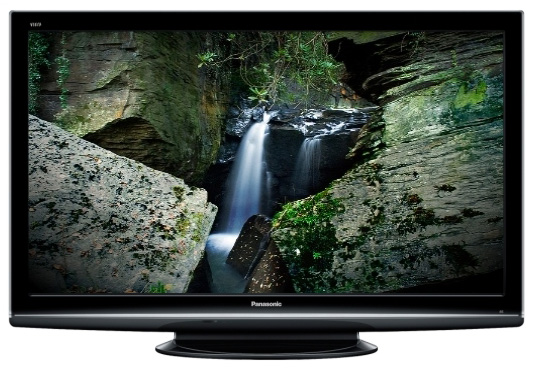

| | DESCRIPTION : |  | Worldwide NTSC/PAL/SECAM Color System
Worldwide NTSC, PAL BG, PAL I, Secam BG, DK/ PAL DK TV tuners
World-wide Dual Voltage 110-240 volts 50-60 hertz
550Hz Sub-field Drive
550Hz technology lets you view superb full-HD motion and still images with 1080 lines of resolution. For even greater clarity with motion images, Panasonic uses its own unique image-analysis technology. This technology converts the motion in each scene into data, then optimises the frame to display fast-action scenes in full-HD resolution.
2,000,000:1 Dynamic Contrast (Native 30,000:1)
VIERA incorporates an improved panel production process and the new Real Black Drive system. A pre-discharge control system, the Real Black Drive system achieves next-generation black reproduction. When you're watching movies, VIERA renders images just the way the director intended, even in scenes where it's difficult to achieve a proper balance of light and dark.
Smart Networking with VIERA Link
VIERA Link allows interconnected operation of various AV devices using only the VIERA remote control, by simply connecting the devices to each other by an HDMI cable. VIERA Link performance has been further enhanced with LUMIX digital camera connection. By connecting a new LUMIX camera that has an HDMI output terminal to VIERA, you can use the VIERA remote to control the playback of images stored on the camera
VIERA Image Viewer (AVCHD/MPEG2/JPEG)
It's easy to view full-HD images with the SD card slot. Watch and show your photos and motion images right after you take them. Simply insert an SD Memory Card into VIERA to display photos and full-HD videos on the large screen. You can also choose from among 3 types of background music and 4 display effects.
V-Audio Surround
V-Audio Surround gives depth-sound-image effect by early-reflection data based on actual room measurement that is generated from digital signal processor.
TV Tuner
Tuner Integrated yes
Tuning System PLL synthesizer 100-position auto-search tuner
CATV Compatibility Hyper-band
Broadcast Stereo Reception NICAM -B, G, I, German (A2)
Teletext Reception 2000P Level 2.5, FASTEXT/LIST
Receiving System World 17-System
Display
Screen Size 50" (127 cm) diagonal
Screen Aspect 16: 9 Wide
Panel G12 Progressive Full-HD Plasma Display Panel
AR Filter yes
Progressive Scan yes
Number of Pixels 2,073,600 (1,920 x 1,080) pixels
Applicable PC signals VGA, WVGA, SVGA, XGA, WXGA, SXGA 60Hz
Applicable Scanning Format 525 (480)/60i, 525 (480)/60p, 625 (576)/50i, 625 (576)/50p, 750 (720)/50p, 750 (720)/60p,
1125 (1080)/50i, 1125 (1080)/60i, 1125 (1080)/24p (HDMI only), 1125 (1080)/50p (HDMI only), 1125 (1080)/60p (HDMI only)
Contrast Ratio (in dark +
surroundings) Dynamic: 2,000,000:1; Native: 30,000:1
Moving Picture Resolution 1080 lines
600 Hz Sub-Field Drive 550 Hz Sub-Field Drive
24p Playback yes
Shades of Gradation 5,120 equivalent steps of gradation
x.v. Color yes
3D Color Management yes
Sub Pixel Control yes
Motion Pattern Noise Reduction yes
C.A.T.S. (Contrast Automatic
Tracking System) yes
Video Noise Reduction yes
3D Comb Filter yes
Picture Mode Dynamic/Normal/Cinema/Game
Sound
Speaker System Bottom speaker
Speakers Full-Range (16 x 4 cm) x 2 (L,R)
Audio Output 20 W (10 W x 2), 10% THD
Sound Mode Music/Speech
Surround V-Audio Surround
Dolby Digital Out yes
Input/Output
VIERA Image Viewer yes (AVCHD/MPEG2/JPEG playback)
HDMI Input 3 (1 side, 2 rear) [ver. 1.3 with x.v.Colour]
Composite Video Input AV1/2/3/4: RCA phono type (3 rear, 1 side)
S-Video Input AV3: Mini DIN 4-pin (rear)
Audio Input (for Video) AV1/2/3/4: RCA phono type connectors [L, R] (3 sets rear, 1 side)
Component Video Input AV2: RCA phono type [Y , PB/CB, PR/CR] (1 set rear)
PC Input Mini D-sub 15-pin x 1 (side)
Audio Input (for HDMI,
PC, Component) RCA phono type connectors (L, R) x 2 sets (rear x 1 set, side x 1 set)
Monitor Out RCA phono type (1 rear)
Audio Output RCA phono type connectors (L, R) (1 set rear: co-use with monitor out), Headphone jack (1 side)
Digital Audio Output (Optical) yes
Features
VIERA Tools yes
VIERA Link yes (HDAVI Control 4)
Screen Saver Wobbling/Side Panel Adjustment
Multi Window PAT
Game Mode yes
Aspect Controls 16:9/14:9/Just/4:3/4:3 Full/Zoom1/Zoom2/Zoom3
On-Screen Display Languages English/French/Arabic/Persian/Thai/Chinese/Bahasa/Vietnam
Off Timer yes
Child Lock yes
General
Power Save Mode yes
Power Consumption (Normal Use) 430 W
Power Consumption (Standby) 0.4 W
Dimensions
W/O stand (W x H x D) 1,218 x 769 x 105 mm
Dimensions with stand (W x H x D) 1,218 x 814 x 401 mm
Weight
W/O stand 32.0 kg
Weight with stand 34.0 kg
Operating Temperature 0°C - 40°C
Note 1: WSS1905 Antenna Connector required connecting US style antenna/cable to VCR - sold on our site for $4.00
Note 2: WMF7 plug adapter required to plug this VCR into a US style power socket - sold on our site for $0.85 |
|
|
