| | DESCRIPTION : |  | Worldwide NTSC/PAL/SECAM Color System
Worldwide NTSC, PAL BG, PAL I, Secam BG, DK/ PAL DK TV tuners
World Wide Voltage Supply AC 100-240V, 50/60Hz

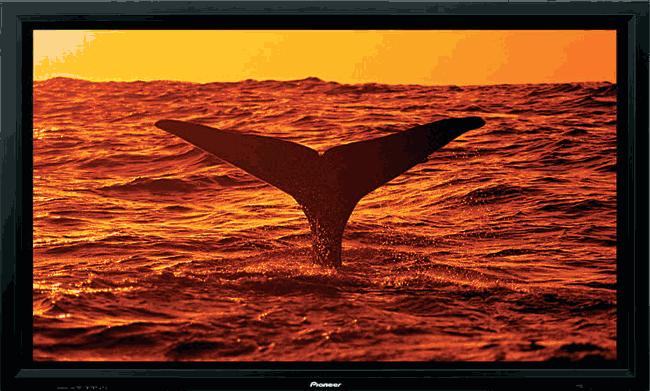

Pioneer's new PDP-607CMX Plasma Panel with higher brightness and greater contrast:
Plasma TV image quality takes another step forward with Pioneer's new-generation plasma panels. In addition to the Pioneer-exclusive Deep Encased Cell Structure, another breakthrough technology called Crystal Emissive Layer boosts efficiency beyond that of any previous model, resulting in higher brightness and unprecedented dark-area contrast. Blacks are blacker, while light areas maintain their brightness, providing eye-catching, realistic video images.
New Pure Drive Pro Video Processing:
The best possible picture quality is realized by combining color management, video scaling, and other image processing on a single chip developed exclusively for Pioneer professional plasma displays. Scaling performance has been enhanced to ensure that even high-definition signals are reproduced with minimal data loss and artifacts. In addition, ACE IV technology identifies the qualities in each image shown, and optimizes the picture to match, ensuring consistent picture quality for fast and slow motion and dark and light scenes.
Specifications:
60" PAL/NTSC/SECAM HDTV ready Plasma Monitor
PC Interface: DVI, VGA (HD-15)
HDCP Compatible: Yes
Diagonal Size: 60 in
Technology: Plasma (PDP)
Resolution: 1365 x 768
Display Format: 720p
Image Aspect Ratio: 16:9
Resolution 1365 x 768
Brightness: 3000:1
Contrast: 1500:1
Widescreen Modes: 16:9, Full, Conventional 4:3
Display Menu Language: French, German, English, Italian, Spanish
Multi-channel Preview: Picture-in-picture (PIP)
HDTV Ready
Supported Computer Resolutions: 640 x 400, 720 x 400, 832 x 624, 848 x 480, 852 x 480, 1360 x 768, 640 x 480 (VGA), 1024 x 768 (XGA), 800 x 600 (SVGA), 1280 x 768 (WXGA)
Freeze Memo
Remote Control
Sound Output Mode
External Speakers Amplifier Power (Total): 18 Watt
Connections
Connector Type: 1 x RGB input ( 15 pin HD D-Sub (HD-15) ) - Rear
1 x RGB output ( 15 pin HD D-Sub (HD-15) ) - Rear
1 x DVI-Digital ( 24 pin digital DVI ) - Rear
2 x Audio line-in ( Mini-phone stereo 3.5 mm ) - Rear
1 x Audio line-out ( Mini-phone stereo 3.5 mm ) - Rear 2 x Speakers output ( Click-fit x 2 ) - Rear
1 x Serial ( 9 pin D-Sub ) - Rear
2 x Remote control ( 6 pin mini-DIN ) - Rear
Power:
AC 120-240 volts 50-60hertz
Power Consumption Stand by / Sleep: 0.8 Watt
Power Consumption Operational: 450 Watt
Dimensions:
Width: 57.9 in
Depth: 4.8 in
Height: 34.6 in
Weight: 136.7 lbs
This Pioneer Plasma display does not contain a TV tuner but you can buy a TV tuner which can be easily fitted in the slot at the rear of the TV. Or just use an external TV tuner like a digital cable box or satellite box to receive television signals.
Note 1: WSS1905 Antenna Connector required to connect US style antenna/cable to VCR - sold on our site for $4.00
Note 2: WMF7 plug adapter required to plug this VCR into a US style power socket - sold on our site for $0.85 |
|
|
