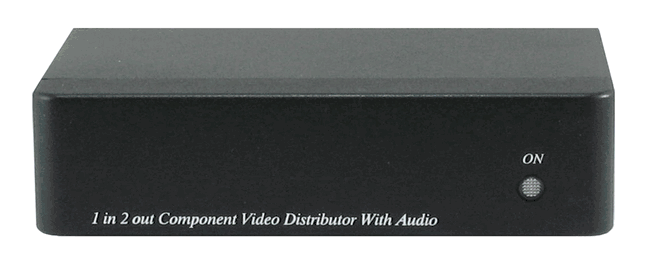

The ANI-1X2COMPAA is a 1 input to 2 output Component Video Distribution Amplifier with Stereo Left and Right Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CAT V Set Top Boxes, etc. The ANI-1X2COMPAA can also be cascaded.

The ANI-1X2COMPAA is a 1 input to 2 output Component Video Distribution Amplifier with Stereo Left and Right Audio.They are used to distribute video and Audio signals to multiple destinations, These products provide multiple outputs that are identical to the source signal. There are useful for distributing signals from VCRs, Camcorders, Video Game Consoles, DVDs, Satellite Receivers, CAT V Set Top Boxes, etc. The ANI-1X2COMPAA can also be cascaded.

FEATURES

Input:

1x Component Video with Stereo Audio

Output:

2x Component Video with Stereo Audio

High resolution Support HDTV 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Lighted Power Indicator

Video Bandwidth >400 Mhz

Accepts NTSC and PAL

Regulatory Approvals CE, FCC, RoHS(2002/95/EC)

SPECIFICATIONS

Type of Amplifier: 1:2 Component Video Distribution Amplifier with Stereo Audio

Input:

Video x 1: Component (RCA) (YPbPr/YCbCr/RGB) Video 75 0hms

Audio x 1: Stereo Left and Right Audio (RCA)

Output:

Video x 2: Component Video (RCA) (YPbPr/YCbCr/RGB)

Audio x 2: Stereo Left and Right Audio (RCA)

Video Bandwidth: 400MHz

Enclosure Type: Metal case

Power Consumed: 420mA Maximum

Power Source: DC 12 Volts, @500mA

Size(L,W,H): 12 in x 6.4 in x1.55 in

WHAT'S INCLUDED

ANI-1X2COMPAA Distribution Amplifier

Users Guide

AC/DC Adapter: 12VDC, 500mA
