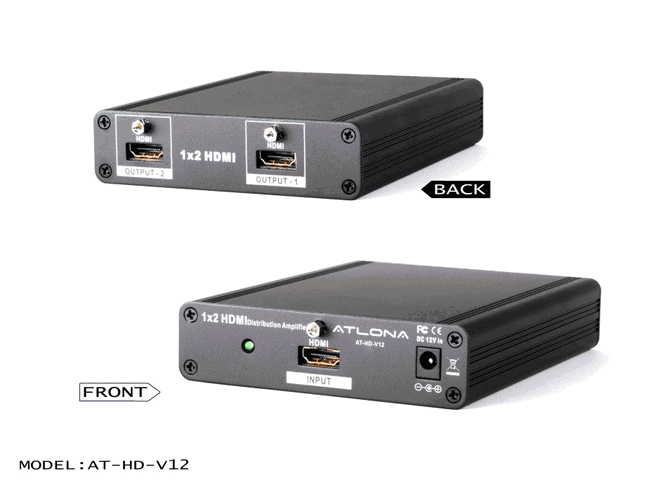

The Atlona 1x2 HDMI (Ver. 1.3) distribution amplifier is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays. AT-HD-V12 splits HDMI signal between up to 2 outputs without signal loss maintaining high resolutions up to 1080p or 1920x1200.

The Atlona 1x2 HDMI (Ver. 1.3) distribution amplifier is a unique device that allows users to connect any digital video source, such as: DVD, Satellite, Cable Box, PC, Xbox, PS3 and more with up to 2 digital HDMI displays. AT-HD-V12 splits HDMI signal between up to 2 outputs without signal loss maintaining high resolutions up to 1080p or 1920x1200.

Features:

3D Capable

HDMI 1.3, HDCP1.1 and DVI1.0 compliant.

Deep color video up to 12bit, 1080p@(24/50/60)Hz 1920x1200.

HDCP keyset allows each output to work independently when connecting to a HDMI display.

Splits a HDMI source up to two outputs simultaneously, without signal loss.

Supports DVI source and DVI display by using HDMI to/from DVI adapter cable.

Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).

Supports High Definition audio-Dolby Digital TrueHD and DTS-HD

Supports a wide range of PC and HDTV resolutions from VGA to WUXGA and 480i to 1080p.

HDMI cable distance test with 1080p resolution, the Input/Output source can run up to 15m (50ft) without degradation

Supports EDID functionality. The unit will detect the first HDMI/DVI output source’s EDID and record it in the unit.

Specifications:

Frequency bandwidth: 6.75 GHz

Max. Resolution HDTV: 1080p

Max. Resolution PC: 1920x1200

Input port: 1x HDMI female port (Type A connector)

Output ports: 2 x HDMI female ports

Power Supply: 12V (US/EU standards, CE/FCC/UL certified)

Dimensions: (inch) 5.4(W) x 3.5(D) x 0.75(H)

Weight(g) 2 LB

Chassis Material Metal

Silk Skin Color Black

Operating Temperature Operating from 0°C ~ 48°C

Package Includes:

1x2 HDMI Distribution Amplifier (AT-HD-V12)

12V Universal Power Supply

User's Manual

110 Volts Only for use in USA
