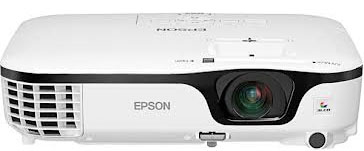

100-240 Volt/ 50-60 Hz, VSGA 3LCD Projector * 800 x 600 (SVGA) Native Resolution * 3x Brighter Colors * Delivering 2800 Lumens of color and White brightness (color/ white light output) * 3LCD, 3-chip technology * True-to-life color which projects brilliant images * Breakthrough horizontal image correction * Easy slide control make setting up your presentation simple * HDMI connectivity digital input and Intuitive control USB plug

Technical Specifications

Projection System Epson 3LCD, 3-chip technology

Projection Method Front / rear / ceiling mount

Driving Method Epson Poly-silicon TFT Active Matrix

Pixel Number 480,000 dots (800 x 600) x 3

Color Brightness (Color Light Output) 2800 lumens1

White Brightness (White Light Output) 2800 lumens1

Aspect Ratio 4:3

Native Resolution 800 x 600 (SVGA)

Resize: 640 x 480 (VGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+)

Lamp Type E-TORL™ 200 W UHE

Lamp Life

ECO mode Up to 5000 hours2

Normal mode Up to 4000 hours2

Throw Ratio Range: 1.45 – 1.96

Size (projected distance): 30″ – 350″ (2.9 ft – 34.2 ft)

Keystone Correction

Automatic Vertical: ±30 degrees

Manual Horizontal: ±30 degrees

USB Plug ‘n Play Projects audio and video

PC and Mac compatible

Contrast Ratio: Up to 3000:1

Color Reproduction: 16.77 million colors

Projection Lens

Type Digital zoom / Manual focus

F-number 1.44

Focal Length 16.7 mm

Zoom Ratio: Digital zoom 1.0 – 1.35

Display Performance

NTSC 480 lines

PAL 560 line (Depends on observation of the multi-burst pattern)

Input Signal NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

Interfaces

Computer / Component video D-sub 15 pin x 1

S-video Mini DIN x 1

Composite video RCA (Yellow) x 1

HDMI x 1

Audio in RCA x 1 (White / Red)

USB connector Type A x 1 (PC-free and other)

USB connector Type B x 1 (USB Plug ‘n Play)

Speaker 2 W monaural

Operating Temperature 41° to 95° F (5° to 35° C)

Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz

Power Consumption ECO mode: 234 W

Normal mode: 283 W

Fan Noise

ECO mode 29 dB

Normal mode 37 dB

Security Kensington®-style lock provision

Password protect function

Dimensions & Weight

Including feet 11.6″ x 9.0″ x 3.1″ (W x D x H)

Excluding feet 11.6″ x 9.0″ x 3.0″ (W x D x H)

Weight 5.1 Lb.

Remote Control

Features Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions

Operating Angle

Right / Left ±30 degrees

Upper / Lower ±15 degrees

Operating Distance 19 ft (5.8 m)
