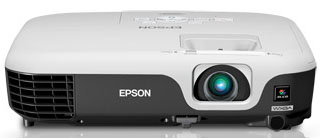

100-240 Volt/ 50-60 Hz, Widescreen WXGA 3LCD Projector
* 1280 x 800 (WXGA) Native Resolution
* 3x Brighter Colors
* Delivering 2600 Lumens of color and White brightness (color/ white light output)
* 3LCD, 3-chip Technology
* High Definition Performance
* Produces 30% mor image area than a standard projector
* Brilliant color and razor-sharp detail that
Technical Specifications
Projection System 3LCD, 3-chip technology
Projection Method Front / rear / ceiling mount
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 1,024,000 (1280 x 800) x 3
Color Brightness (Color Light Output) 2600 lumens1
White Brightness (White Light Output) 2600 lumens1
Aspect Ratio 16:10
Native Resolution 1200 x 800 (WXGA)
Resize 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA) ,1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+)
Lamp Type E-TORL™ 200 W UHE
Lamp Life
ECO mode Up to 5000 hours2
Normal mode Up to 4000 hours2
Throw Ratio Range 1.30 – 1.56
Size (projected distance) 33″ – 318″ (0.84 – 8.08 m)
Keystone Correction
Automatic Vertical: ±30 degrees
Contrast Ratio Up to 3000:1
Color Reproduction 16.77 million colors
Projection Lens
Type Manual (optical) zoom
Focal Length 1.58 – 1.72
Zoom Ratio Digital zoom 1.0 – 1.2
Display Performance
NTSC 480 lines
PAL 560 line (Depends on observation of the multi-burst pattern)
Input Signal NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Interfaces
Computer / Component video D-sub 15 pin x 1
S-video Mini DIN x 1
Composite video RCA x 1
USB Connector Type B x 1 (USB display and mouse/ Keyboard control)
Speaker 1 W (mono)
Operating Temperature 41° to 95° F (5° to 35° C)
Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz
Power Consumption ECO mode: 234 W
Normal mode: 283 W
Fan Noise
ECO mode 29 dB
Normal mode 37 dB
Security Kensington®-style lock provision
Security anchor bar
Dimensions & Weight
Including feet 11.6″ x 9.0″ x 3.1″ (W x D x H)
Excluding feet 11.6″ x 9.0″ x 3.0″ (W x D x H)
Weight 5.1 Lb.
Remote Control
Features Source search selection, power, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions
