Through-the-wall installation Not suitable for window installation Standard, universal interior trim kit for existing wall sleeve included (New wall sleeve sold separately: KSTSLV1) Special 230-volt/20-amp electrical outlet required Unit will not work with a standard 115V outlet

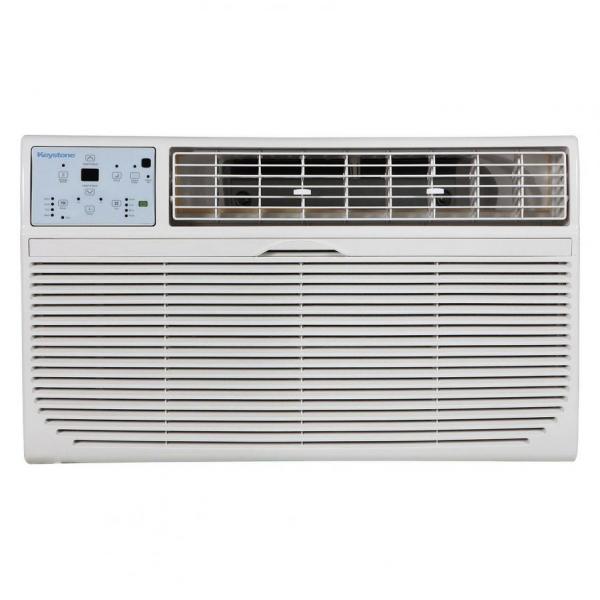

The Keystone 14,000 BTU 230V through-the-wall air conditioner with 10,600 BTU Supplemental Heat Capability is perfect for rooms up to 700 square feet. In addition to cooling, this versatile unit also offers supplemental heat capability, providing you with an additional heat source to your main heat source when outdoor temperatures are above 45 degrees Fahrenheit. It has electronic controls with LED display and a temperature sensing LCD remote control, allowing you to conveniently see, set and maintain the room temperature from across the room. Money-saving features include energy-saver mode, sleep mode and a programmable 24-hour timer. This unit is designed for through-the-wall installation and is not designed for standard window installation (wall sleeve sold separately). This unit also requires a special 230-volt/20-amp electrical outlet and will not operate with a standard 115V household electrical outlet.



Specifications

14,000 BTU cooling capacity/10,600 BTU supplemental heating capacity

Supplemental heat capability provides an additional heat source to your main heat source when outdoor temperatures are above 45°F

Designed for a room up to 700 sq. ft.

Electronic controls with LED display lets you easily select options with the touch of a button

Temperature sensing LCD remote control allows you to control temperature from across room

Auto-restart saves your settings for when power is restored to unit

Adjustable 4-way air flow direction allows you to easily control the direction of cool air

3 cooling speeds, 3 fan speeds, and 1 heat speed

Auto function determines fan speed depending on set temperature

Programmable 24-hour on/off timer cools on your schedule

Energy-saver mode conserves energy and saves money

Sleep mode gradually increases room temperature after being activated

Easy-clean mesh filter with check filter alert on unit

6.5 ft. power cord with NEMA 6-15P grounding plug makes extension cords unnecessary

U.L. safety listing

Assembled Country

China



Assembled Size

14.5"H x 20.3"L x 24.2"W
