Provides two video outputs from one input to split video sources and drive signals up to 900 feet. A unique feature of this DA is the included power linking cable and port to power multiple units from the same power supply.

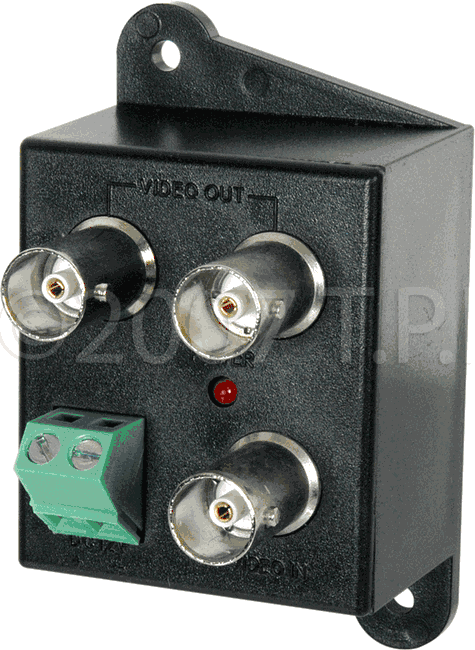

1x2 Video Distribution Amplifier with BNC Connectors

Provides two video outputs from one input to split video sources and drive signals up to 900 feet. A unique feature of this DA is the included power linking cable and port to power multiple units from the same power supply.

Features

Dual power - Operates on 12VDC or 24VAC

Includes 12VDC power supply

Video Bandwidth: 10Hz - 10MHz

Video Input Level: 0.8~1.2 Vp-p @ 75 Ohms

Video Output Level: 1Vp-p @ 75 ohms

Includes surface mounting holes as well as surface mount hardware to both wood and drywall
