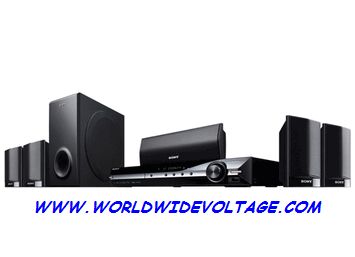

The DAV-TZ200 features S-Master Digital Amplifier, USB movie playback, BRAVIA Sync and HDMI output to upscale DVDs to 1080p resolution.

Features

Modified for all region (Regions 1-6) playback

Guaranteed to play all old, current and future DVD movies including DVDs that are RCE coded

PAL/NTSC Playback of DVD/VCD

To play PAL movies you need a PAL TV or a Video converter

World Wide Power Supply: 110-240 volts 50-60 hertz

BRAVIA Sync

Open up a new world of connectivity and entertainment simplicity by taking full control of your entire system with a single remote commander and BRAVIA Sync.

All connected devices can sync and communicate with one another for seamless and intuitive operation via just one remote commander, thanks to this 100% lossless digital interface that always delivers superior digital images and audio through a single cable



S-Master Digital Amplifier

Sony’s Systems are equipped with S-Master Digital Amplifier for superb accuracy, clear separation of signals, and balanced sound reproduction using a digital-to-digital process. They are designed to be highly efficient, producing minimal heat while taking up about a quarter of the space of conventional amplifiers.

S-Master accepts all digital signals in digital and cleanly amplifies the signal in “digital” without needing to convert it into analogue first. Using a simplified signal path and full digital processing, the audio signal is taken directly from DSP stage without additional D/A conversion. This keeps the purity of the digital audio signal right up to the final speaker output, reproducing a realistic sound experience just like the original recording.

USB Movie Playback (DivX and MPEG4 Simple Profile)

USB Record and Play Function

HDMI Output (Upscale 1080p for DVD)

Total Power Output 500W (83W x 5 + 85W)

OUTPUT

Power Output - Front (RMS) 83W x 2

Power Output - Center (RMS) 83W

Power Output - Surround (RMS) 83W x 2

Power Output - Subwoofer (RMS) 85W

Power Output - Total (RMS at 10% THD) 500W

AMPLIFIER

S-Master Yes (24-Bit)

Audio Line IN/OUT (Analogue) 1 / –

Video Signal IN/OUT (Composite) – / 1

Video Signal IN/OUT (Component) – / 1

Video Signal OUT (HDMI) Yes (1080p)

USB 1

Bass Boost Function

(Dynamic Bass on RM) Yes

Night Mode (Normal/Plus) Yes

Movie/Music Mode Yes

Portable Audio Enhancer Yes

Dolby Pro Logic/Dolby Pro Logic II – / Yes

Dolby Digital Yes

DTS Yes

Multi Stereo (Link) Yes

A/V Sync (Lip Sync) Yes

Speaker Formation Yes

Timer (REC/PLAY/SLEEP) Yes (– / – / Yes)

BRAVIA Sync Yes

Dimmer Yes

Power Save Mode Yes

USB MEMORY

Decoding Format for Sound (Playback) MP3, WMA, AAC, JPEG

Decoding Format for Video (Playback) DivX, MPEG4

Enccoding Format for Sound (Record) MP3

MP3 File Name/ID3Tag

Ver. 1.1/ID3Tag Ver. 2.0) Yes / Yes / Yes

Play Mode (Normal) Yes (1 DEVICE)

Play Mode (Shuffle) Yes (1 FOLDER)

Play Mode (Repeat) Yes

Play Mode (Resume) Yes

Recording Source (CD) Yes

Recording Source - DATA DISC (MP3) Yes

Recording Mode - Nomal (CD) Yes (by disc / by track)

Recording Mode - Normal

(DATA DISC - MP3) Yes (by folder / by track)

Recording Mode - Program Yes (CD only)

Recording Speed - CD 2.5X

Recording Speed - DATA DISC (MP3) 20X Max

Edit - ERASE

(ALL / 1 FOLDER / 1 TRACK) – / Yes / Yes

TUNER

Band FM / –

External FM/AM Antenna Yes (FM: 75 ohm)

Station Preset FM20 / –

Tuning Range (FM) 87.5 ~ 108.0 MHz

DVD/SACD/VCD/CD PLAYER

Type 1 Disc Tray

DVD/DVD Audio/SACD/CD/Video CD Yes / – / Yes / Yes / Yes

DVD/CD/SACD TEXT Yes / Yes / Yes

CD-R/CD-RW Playback Yes / Yes

DVD-R/+R/+R DL/+RW/-RW/-RW(VR)

Playback (Some discs may not be played

back) Yes / Yes / Yes / Yes / Yes / Yes

DivX Playback Yes

MPEG4 Simple Profile Playback Yes

JPEG Playback Yes

MP3 Playback Yes

MP3/ID3Tag Ver.1.1/iD3Tag Ver.2.0 Yes / Yes / Yes

Multi Disc Resume (DVD, VCD) 10 Discs

New GUI/OSD Yes

D/A Converter (Video) 108MHz/12bit

SPEAKERS

Front Speaker Type (Grill) Micro Sat (Punched Metal)

Front Speaker System 1 way (Full Range)

Front Speaker Woofer Unit 6.5cm

Centre Speaker System 1 way (Full Range)

Centre Speaker Woofer Unit 6.5cm

Surround Speaker Type (Grill) Micro Sat (Punched Metal)

Surround Speaker System 1 way (Full Range)

Surround Speaker Woofer Unit 6.5cm

Subwoofer - Active/Passive Passive

Subwoofer Speaker Unit 15cm
