The Gefen Splitter for HDMI 1.3 allows AV sources such as Blu-Ray players and set-top boxes to be displayed on up to 3 High Definition Displays simultaneously. Two or more splitters may be connected together to create a larger distribution.
This product supports HDMI 1.3 Deep Color and 1080p Full HD with 8 channels of multichannel digital audio for superior quality HDMI 1.3 signal distribution.
Intended Use(s): Home Theater | Computer A/V | Digital Signage
Distribute One HDMI 1.3 Source to Three Displays
The Gefen Splitter for HDMI 1.3 allows AV sources such as Blu-Ray players and set-top boxes to be displayed on up to 3 High Definition Displays simultaneously. Two or more splitters may be connected together to create a larger distribution.
This product supports HDMI 1.3 Deep Color and 1080p Full HD with 8 channels of multichannel digital audio for superior quality HDMI 1.3 signal distribution.
How It Works

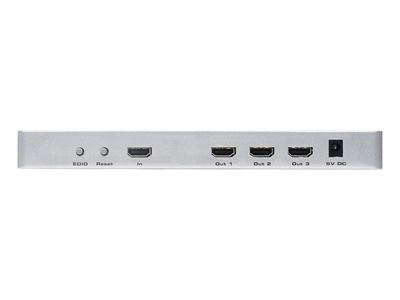

The Gefen Splitter for HDMI 1.3 is connected using an HDMI cable from the HD source to the Splitter for HDMI 1.3's input. There are three HDMI outputs. Each output can be connected to an HDTV display. The 5V power supply is connected to the Splitter for HDMI 1.3. All connected displays then show an exact replica of the HD signal.
HDMI 1.3 Features Supported:
Deep Color (XV Color)
Dolby TrueHD & DTS Master Audio
225 MHz (up to 12 bit YUV 444 @ 1080p)
Color Space Conversion
CEC Pass Through
Lip-Sync Pass Through
Note: This HDMI product is fully HDCP compliant.
All displays that cannot show the same video resolution(s) as the Primary Display connected to Output #1 may fail to show a picture. Secondary displays follow the Primary by sharing the resolution and capability information (EDID) obtained from the Primary Display.
Features:
Up to three HDMI™ / DVI-capable displays may share one HDMI source simultaneously
Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
Supports HDMI 1.3 features: Deep Color, Dolby TrueHD & DTS Master Audio, plus Color Space Conversion and CEC/Lip-Sync Pass-through
HDCP compliant
Specifications:
Video Amplifier Bandwidth: 225 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
Single Link Range: 1080p/60 12 bit color depth, 1920x1200
